Description

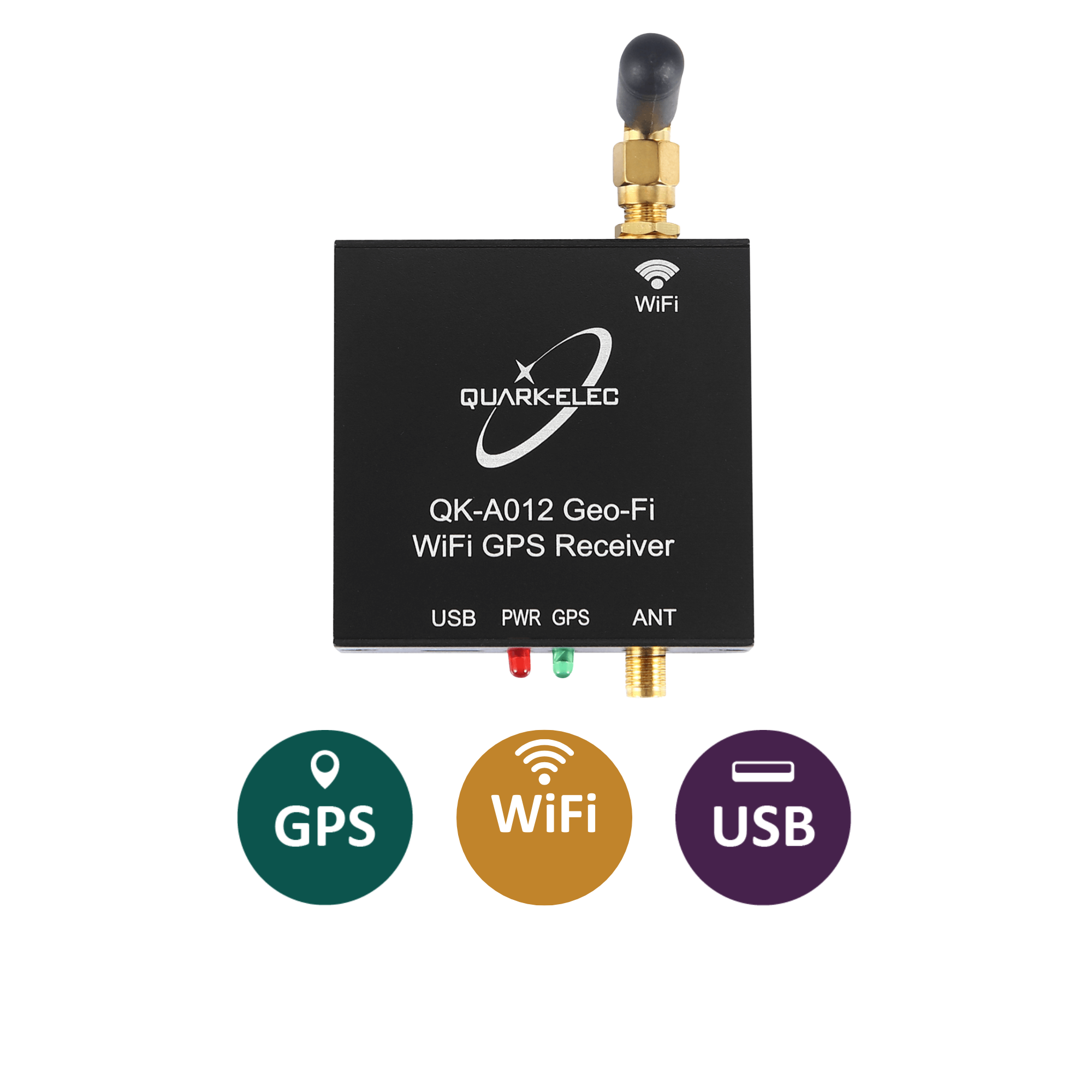

The ideal Marine GPS Receiver & GPS Repeater for helping you keep on track. Using 50 channel ‘all-in-view’ tracking, so you know exactly where you are all the time.
Containing WiFi the QK-A012 will repeat the GPS data – so that up to 5 different devices can access the information up to 12 metres away (in an open air environment).
The QK-A012 is ideal for use both on boats or on land. (for example if you want to access GPS data in a building, caravan, tunnel, etc.)
Features
-
- 50 Channels “All-In-View” Tracking
- Position accuracy of 2.5 meters 2D RMS
- Cold / Warm / Hot Start Time: 26/26/1 seconds
- Reacquisition Time: 1.5 second
- Standard NMEA-0183 output through WiFi and USB
- Support Ad-hoc and Station mode in WiFi
- Two LEDs indicating power and GPS activity
- USB 2.0 powered (<50mA@5.0V)
- Powered SMA connector for 50 Ohm GPS antenna
- The internal WiFi access point connects up to 4 devices simultaneously
- Compatible with Windows 7,8,10,Mac OS X, Linux systems, Android and iOS. Please note, initial configuration may only be performed using a Windows operating system.
How to install
For best results the QK-A012 needs to be connected to an aerial. (Ideally an Active GPS antenna with an SMA male connector)
What’s Included?
- 1 x QK-A012
- 1 x USB cable
Help and Support
For any technical questions regarding this product, you can visit the forum at https://www.quark-elec.com/forum/ and ask us your question, it’s regularly checked by our technical team and your question may already have been answered there.
Alternatively, contact us directly, with details of your set up and we will be happy to help.
