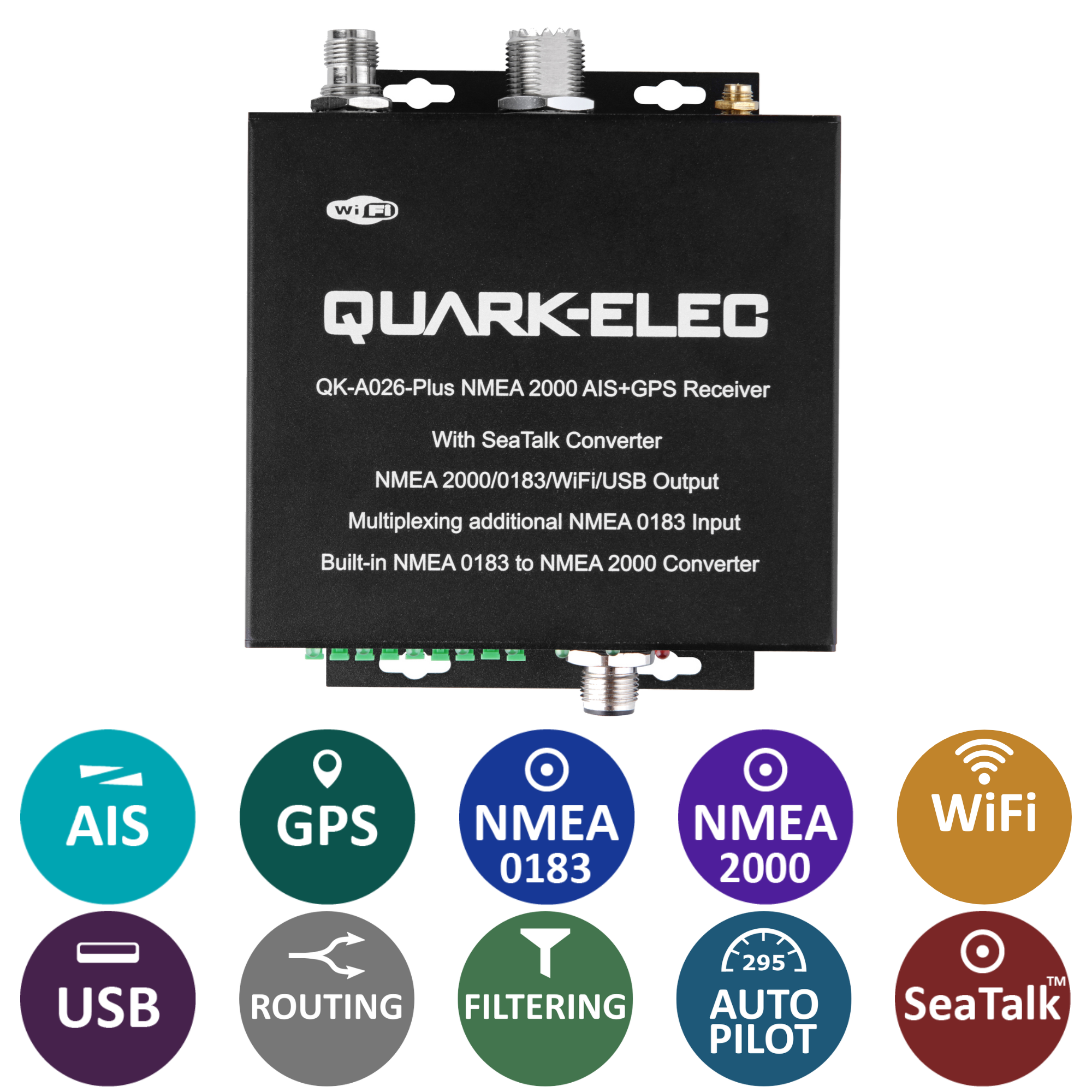

A026-plus NMEA 2000 AIS Receiver with NMEA Multiplexer + N2K Converter + WiFi + GPS
$315.00
The new A026+ is an incredibly versatile device with outstanding build quality. With countless functions working seamlessly this multifaceted AIS receiver is a must have for those looking for an easy and reliable WiFi enabled solution to complex marine networks.
- AIS and GPS receiving capabilities
- Up to 40 nautical miles receiving range
- NMEA 2000 connection
- 1 x 0183 INPUT 1 x 0183 OUTPUT 1 x SeaTalk Input
- WiFi capable
- USB enabled
- A fully integrated bi-directional data converter to allow your devices to communicate together with no delay/data lag.
In stock (can be backordered)
- Description
- Downloads
- What's in the box?
- Connections
- AIS Receiver Comparison Guide
- Compare NMEA Multiplexers
- Product Videos
- Compatible Applications
Description
The A026+ NMEA 2000 AIS Receiver is used by many commercial and retail sectors alike, including sports, leisure, fishing and vessel monitoring markets. This level of adaptability is due to not only the A026+’s solid metal enclosure and heavy duty S0239 connector but also because of its WiFi capabilities and its ease of use. The A026+ requires little to no configuration in most cases and can transmit all of your data to any WiFi enabled Android, iOS, Windows or Mac device allowing you to use navigational applications on the go.
This dynamic nature of the A026+ is what currently makes it one of the best smart solutions available on the marine market. The below chart highlights the significant functional differences between the entry-level devices and commercial grade A027+ and A026+:
| Product | USB | WiFi | Ethernet | NMEA 2000 | SeaTalk Converter | Maximum AIS range |
|---|---|---|---|---|---|---|
| A027+ | One-way | One-way | Yes | One-way | Yes | 40nm |
| A026+ | Bi-directional | Bi-directional | No | Bi-directional | Yes | 40nm |
| A024 | One-way | One-way | No | No | No | 15nm |
| A026 | One-way | One-way | No | No | No | 15nm |
| A027 | One-way | One-way | No | No | Yes | 15nm |
| A028 | One-way | No | No | One-way | No | 20nm |
Features
| Feature | Description |
|---|---|
| Dual AIS Receivers | Two independent receivers monitoring AIS channels simultaneously |
| Sensitivity | Up to -112 dBm @ 30% PER (up to 450% more sensitive than the A026) |
| Receiving Range | Up to 40 nautical miles |
| Protocol Conversion | SeaTalk1 to NMEA 0183 protocol converter |
| Output Options | NMEA 0183 message output via WiFi, USB, and NMEA 0183 |
| Built-in GPS | Provides positional data |
| NMEA Multiplexing | Combines NMEA input with AIS + GPS sentences into a seamless data stream |
| NMEA 2000 Conversion | Converts combined NMEA 0183 data into NMEA 2000 PGNs |
| WiFi Connectivity | Internal access point connects up to 4 devices simultaneously |
| Plug & Play | Compatible with chart plotters and PCs |
| OS Compatibility | Windows, Mac, Linux, Android, iOS (initial configuration requires Windows) |
Available to add to your order
VHF/AIS Antenna:
GPS Antenna:
- AS04 entry-level GPS Antenna (SMA to TNC adapter needed)
- AS14 Waterproof mushroom GPS, Galileo and Glonass Antenna (BNC to TNC adapter needed)
VHF Antenna Splitter:
- A015-RX Active VHF Splitter-for AIS receivers (only needed if planning to share a single VHF antenna between an AIS receiver and VHF radio)
Protocol Bridge:
- AS03 NMEA Protocol Bridge (only needed if connecting to RS232 devices)
| Document Type | Link |
|---|---|
| Set Up Guide |  |
| User Manual | |
| Drivers |  |
| Firmware | |
| Configuration Tool | |
What’s included?
- 1 x -A026+

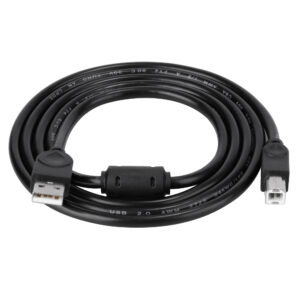

- 1 x USB cable

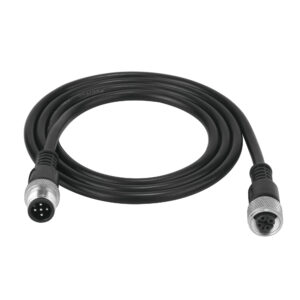

- 1 x 1m NMEA 2000 drop cable
- 1 x Setup Guidebook
- 1 x WiFi antenna

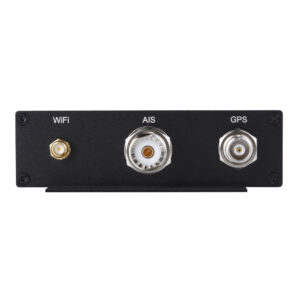

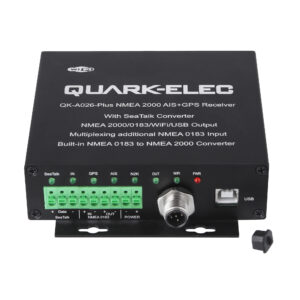

Connections
| Connection | Specification |
|---|---|
| AIS Antenna Connector | Heavy-duty SO239 VHF connector for external antenna. Requires an active VHF antenna splitter (e.g., A015-RX) if sharing one VHF antenna with A026-Plus and VHF voice radio. |
| GPS Connector | TNC female bulkhead connector for external GPS antenna. Integrated GPS module provides positional data when a GPS antenna is connected. |
| WiFi Connector | SMA connector. Supports Ad-hoc and Station Modes on 802.11 b/g/n for WiFi output of all messages. WiFi can be disabled via standby mode. |
| USB Connector | Type-B USB connector (cable included). Connects directly to a PC USB port. Provides data input/output and is used for configuration and firmware updates. |
| NMEA 0183 Output Connectors | Allows connection to AIS-compatible equipment (wind, depth, heading sensors). Inputs can be multiplexed with AIS+GPS and output via NMEA 0183, WiFi, USB, and NMEA 2000 backbone. |
| NMEA 2000 Connector | Pre-fitted five-core screened cable with male micro-fit connector. Connect via T-piece to NMEA 2000 backbone. Backbone requires two termination resistors (one at each end). |
Unboxing
How to Configure
| Name of APP | iPhone | Android | Mac | PC | Linux |
| Open CPN | ✅ | ✅ | ✅ | ✅ | |
| Navionics | ✅ | ✅ | |||
| Seanav | ✅ | ✅ | |||
| Boat Beacon | ✅ | ✅ | |||
| SeaPilot | ✅ | ✅ | |||
| Belfield Chartplotter | ✅ | ✅ | |||
| iRegatta | ✅ | ✅ | |||
| iSailor | ✅ | ✅ | |||
| Marine Traffic | ✅ | ✅ | ✅ | ✅ | |
| SEAiq | ✅ | ✅ | ✅ | ✅ | |
| AIS Radar | ✅ | ||||
| Imray Navigator | ✅ | ||||
| iNavX | ✅ | ✅ | |||
| COAA Shiplotter | Parallels/Boot Camp | ✅ | Wine | ||
| NMEA remote app | ✅ | ||||
| PCPLOTTER | Parallels/Boot Camp | ✅ | |||
| NavigationPLANNER | Parallels/Boot Camp | ✅ |
